WD_BLACK SN850X PS5 SSD Review 2026 - Heatsink and Capacities

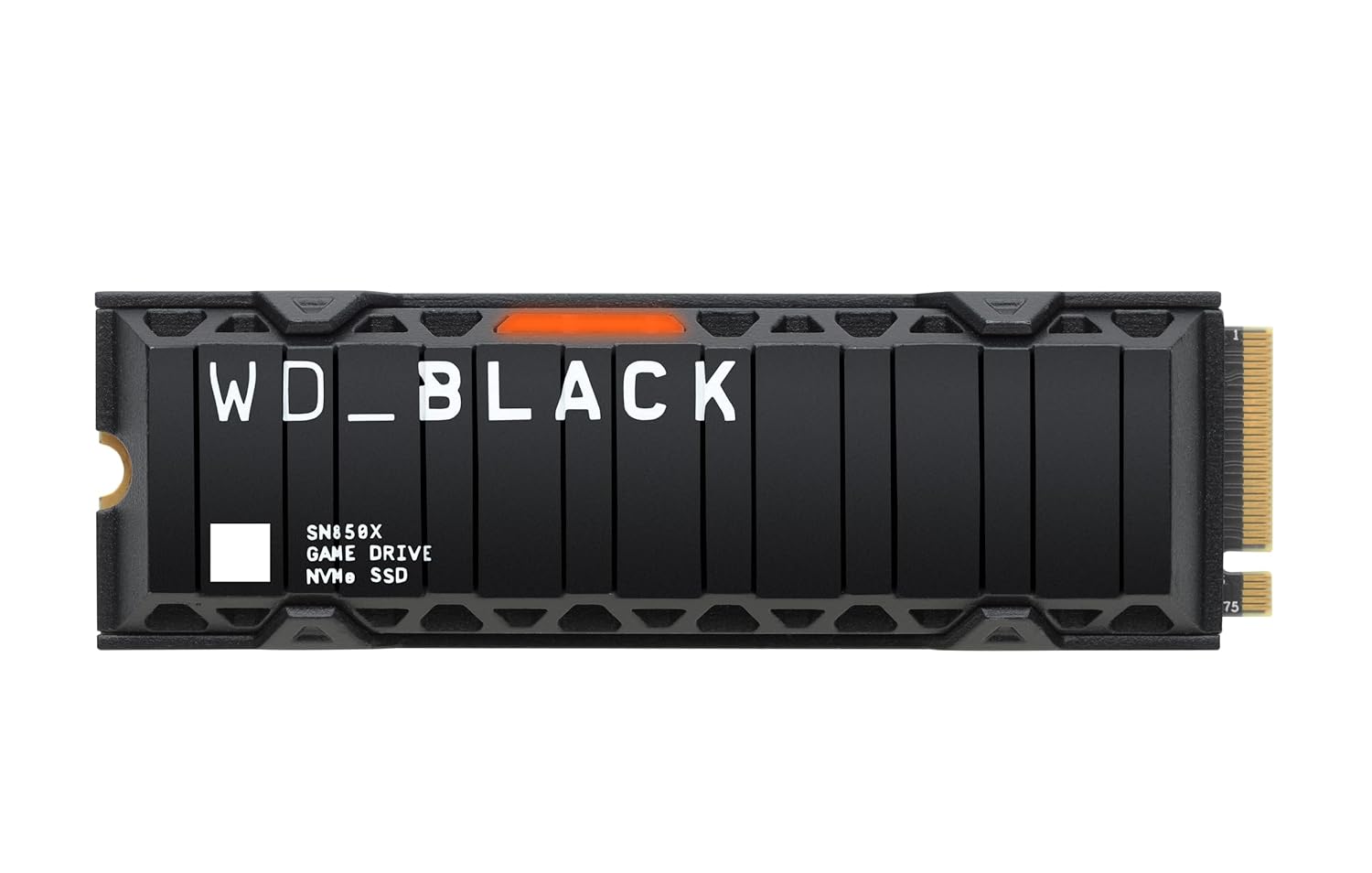

WD_BLACK SN850X NVMe SSD with pre-installed heatsink for PS5 expansion Save
TL;DR: The WD_BLACK SN850X with heatsink reads faster than the 5,500 MB/s Sony recommends, and the heatsink model is the one listed for the PS5. It comes in 1TB to 8TB with a 5-year limited warranty. It has been replaced, so buy the SanDisk Optimus GX PRO 850X with heatsink instead.

Now Sold As the SanDisk Optimus GX PRO 850X#

The SN850X has been replaced by the SanDisk Optimus GX PRO 850X, so buy that one instead. It's rated for the same 7,300 MB/s reads and 6,600 MB/s writes on the 2TB and 4TB models, it comes with or without a heatsink, and the heatsink version works with the PS5 and PS5 Pro. It has a 5-year limited warranty too.

The rest of the review covers the original WD_BLACK SN850X, not its successor.


At a Glance#

Product : WD_BLACK SN850X (with Heatsink) NVMe SSD

Brand : WD_BLACK (Western Digital)

Best For : PS5 players who want an M.2 expansion drive with the heatsink already fitted

Form Factor : M.2 2280, PCIe Gen4 x4, with a pre-installed heatsink

Key Highlights:

  • Reads at up to 7,300 MB/s on the 1TB to 4TB models, faster than the 5,500 MB/s Sony recommends
  • The heatsink comes fitted, and the heatsink model is the one listed for the PlayStation 5
  • The heatsink helps it hold peak performance through your most intense gaming sessions
  • Comes in 1TB, 2TB, 4TB and 8TB
  • 5-year limited warranty, rated for 600 TBW on the 1TB up to 4,800 TBW on the 8TB

Who Should Buy This#

It's for anyone with a PS5 who's tired of deleting one game to make room for another.

Perfect for:

  • Running out of space and uninstalling something every week to make room
  • Collectors who want a whole rotation of big games installed and ready to launch
  • A new PS5 that needs a second drive before the built-in one fills up
  • Anyone who'd rather not fit a heatsink on a bare drive themselves

Sony recommends an M.2 SSD that reads at 5,500MB/s or faster. The SN850X beats that: up to 7,300 MB/s on the 1TB, 2TB and 4TB heatsink models, and up to 7,200 MB/s on the 8TB.

Don't expect every game to run exactly as it does from the PS5's own SSD, though. Sony warns that not every game will necessarily play with the same performance, even from a drive this fast.

Pre-Installed Heatsink for the PS5 Bay#

Any M.2 drive you put in the PS5 needs cooling, such as a heatsink and a heat transfer sheet. This one comes with its heatsink already on, and that's the SN850X version listed for the PlayStation 5.

The heatsink is there to help it hold peak performance through your most intense gaming sessions.

Capacities Mapped to Your Game Library#

Pick from 1TB, 2TB, 4TB and 8TB. All four fit inside the 250 GB to 8 TB range Sony supports for an M.2 SSD.

1TB : A starter expansion if you keep a focused library and rotate a handful of games at a time.

2TB : Room for a deeper library of big games. If you're buying now, the GX PRO 850X link at the top is this size, with a heatsink.

4TB : For keeping a large catalog of big games installed at once.

8TB : The largest heatsink model, for the biggest libraries.

Warranty and Endurance#

You get a 5-year limited warranty, and the endurance rating grows with capacity: 600 TBW on the 1TB, 1,200 TBW on the 2TB, 2,400 TBW on the 4TB and 4,800 TBW on the 8TB. TBW, or terabytes written, is how much data the drive is rated to write over its life.


Technical Specifications#

Interface : PCIe Gen4 x4, NVMe

Form Factor : M.2 2280, with pre-installed heatsink

Sequential Read : Up to 7,300 MB/s (1TB to 4TB), up to 7,200 MB/s (8TB)

Sequential Write : Up to 6,300 MB/s (1TB), up to 6,600 MB/s (2TB, 4TB and 8TB)

Random Read/Write : Up to 1,200K / 1,100K IOPS (2TB)

Capacities : 1TB, 2TB, 4TB, 8TB

Endurance (TBW) : 600 TBW (1TB) / 1,200 TBW (2TB) / 2,400 TBW (4TB) / 4,800 TBW (8TB)

PS5 Compatibility : Heatsink model, listed for PS5

Warranty : 5-year limited warranty


Pros & Cons#

Pros:

  • Reads at up to 7,300 MB/s on the 1TB to 4TB models, faster than the 5,500 MB/s Sony recommends
  • The heatsink comes fitted, and the heatsink model is the one listed for the PlayStation 5
  • Rated for 600 TBW on the 1TB up to 4,800 TBW on the 8TB
  • 5-year limited warranty
  • Four sizes, from 1TB to 8TB

Cons:

  • It has been replaced by the SanDisk Optimus GX PRO 850X
  • The WD_BLACK Dashboard, which turns on Game Mode 2.0, runs only on Windows, so you can't use it from the PS5

Final Verdict#

The SN850X with heatsink is a good PS5 drive: faster than Sony recommends, cooled out of the box and backed by a 5-year limited warranty. It has been replaced, though, so buy the SanDisk Optimus GX PRO 850X with heatsink instead. The link at the top is the 2TB model.

If you also build a PC and want a drive without a heatsink, here are the best NVMe SSDs for a gaming PC. There's also our WD_BLACK SN850X review.
