At a Glance#
Product : Bosch BCC100 Connected Control Thermostat
Brand : Bosch
Best For : Homeowners with an existing C-wire who want a large, readable touchscreen and reliable 7-day scheduling rather than learning automation
Protocol : Wi-Fi 802.11a/b/g/n, 2.4GHz only
Buy Now : View on Amazon
Key Highlights:
- 5-inch 854x480 color touchscreen you can read from across a hallway, no squinting or reading glasses
- Seven relay outputs drive heat pumps up to 4 heat / 2 cool stages, so it fits systems that trip up entry-level thermostats
- 7-day programmable schedule editable directly on the screen, so you never depend on the app to change a setpoint
- Temperature control from 45°F to 99°F with ±1°F rated control accuracy
- 5-year limited warranty, roughly double the coverage most competing Wi-Fi thermostats offer
Who Should Buy This#
The BCC100 hits a sweet spot for homeowners who want a genuinely large, legible thermostat and solid HVAC compatibility without the learning-algorithm tax. It delivers 4-stage heat pump control and a 5-inch color display that competing brands reserve for their premium models, from a thermostat that sits in the mainstream tier. What you trade away is automation: there's no geofencing and no remote sensors, so savings come from a schedule you set once rather than a thermostat that guesses.
Perfect for:
- Heat pump owners who keep finding that budget thermostats only handle 1 or 2 heat stages and can't drive their auxiliary strip heat properly
- Older adults or anyone with low vision who struggle with the tiny dial displays on Nest-style thermostats and want temperature readable from ten feet away
- Schedule-driven households with predictable work hours who want to program once and stop thinking about it, rather than train an algorithm for weeks
- Renovation DIYers replacing an aging programmable thermostat who already have a C-wire in the wall and want a straightforward same-day swap
Design & Build Quality#

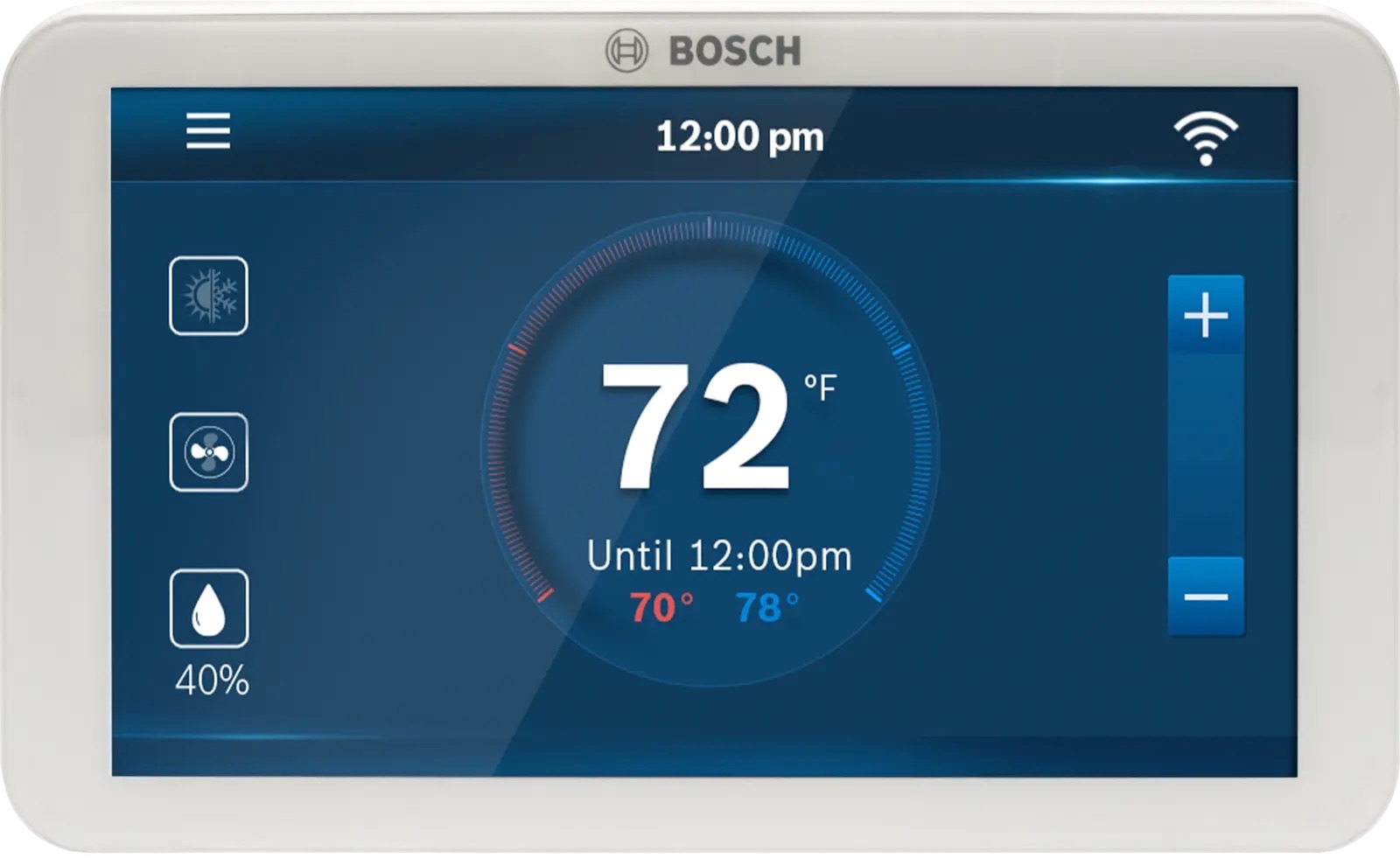

The BCC100 is a landscape-oriented rectangle, dominated almost entirely by its display. A slim white bezel wraps the 5-inch panel, and the whole unit sits flat against the wall rather than protruding like the puck-shaped competition. It reads as an appliance rather than jewelry — which is precisely the point for anyone who has ever squinted at a 2-inch circular display from the far side of a living room.
The screen itself is a full-color 854x480 panel. That resolution is modest by phone standards but enormous for a thermostat, and Bosch spends the pixels sensibly: the current temperature renders in huge numerals, with mode, humidity, fan status, and schedule state arranged around the edges. Touch response is direct and immediate. Because all scheduling lives on-device, the display isn't a status readout for the app — it's the primary interface, and the app is the secondary one.
Key Features#
A Screen You Can Actually Read From Across the Room#
At 5 inches diagonal with 854x480 resolution, the BCC100's display has roughly three times the visible area of the ~2-inch circular displays most smart thermostats use, and the current temperature gets most of it.
The practical outcome is mundane and genuinely useful: you can check the setpoint from the couch, or from the hallway on the way to bed, without walking up to the wall and waking a motion-activated display. For anyone with reduced vision, this single spec matters more than every automation feature combined.
Heat Pump Support That Goes to Four Stages#
Seven relay outputs — G, Y1, Y2, W1, W2, O/B, and H/dH — let the BCC100 drive heat pump systems up to 4 heat / 2 cool, plus conventional gas, oil, or electric systems up to 2 heat / 2 cool. Most mainstream Wi-Fi thermostats top out at a single heat stage plus one auxiliary.
Two more wiring details from Bosch's engineering sheet that rarely make it into reviews and can decide the purchase. The BCC100 supports two-transformer systems with separate Rh and Rc terminals, which many one-piece smart thermostats do not. And that H/dH terminal drives one accessory — a humidifier or a dehumidifier, not both at once — with Bosch supporting active and passive dehumidification without external relays on compatible equipment, such as its own water-source heat pumps fitted with a hot gas reheat coil and/or ECM motor. Unit modes include Emergency Heat, and the fan offers a Circulate setting alongside Auto and On.
That matters if you own a heat pump with electric strip backup. A thermostat that can't stage properly either runs the strips too eagerly, spiking your bill, or not soon enough, leaving the house cold on the coldest mornings. The BCC100 has the terminals to sequence them correctly. Check current availability: View on Amazon
Scheduling That Doesn't Depend on Your Phone#
The 7-day program is built and edited on the touchscreen itself. Each day gets its own setpoints, and you tap through them directly rather than navigating a phone app's menu tree.
This has a real reliability benefit. When your Wi-Fi drops, or Bosch's cloud has a bad afternoon, or you hand the house to a pet sitter who won't install anything, the thermostat keeps running its schedule and remains fully controllable at the wall. Losing connectivity costs you app access, the weather display, and voice control — not heat.
Tight Temperature Control#
Bosch rates the BCC100 over a 45°F to 99°F range with ±1°F (±0.5°C) control accuracy. That is how closely the thermostat holds to the number you set. Bosch publishes no separate deadband or differential figure, so treat the ±1°F as an accuracy spec rather than a promise about how tightly the system cycles.
What Bosch does publish about cycling is the anti-short-cycle window: adjustable from 1 to 5 minutes, 3 by default, which stops the system short-cycling on marginal calls for heat or cool.
Technical Specifications#
Display : 5-inch full-color capacitive touchscreen, 854 x 480 pixels
Connectivity : Wi-Fi 802.11a/b/g/n, 2.4GHz only (Bosch states it is not compatible with 5GHz)
Temperature Control Range : 45°F to 99°F (7°C to 37°C)
Control Accuracy : ±1°F (±0.5°C)
Conventional System Support : Up to 2 heat / 2 cool (gas, oil, electric)
Heat Pump Support : Up to 4 heat / 2 cool
Relay Outputs : 7 terminals — G, Y1, Y2, W1, W2, O/B, H/dH
Electrical Rating : 24 VAC (18-30 VAC), 1 A max per output terminal, 7 A max total load
Power Source : C-wire required (24VAC common)
Scheduling : 7-day programmable, configured on-device or via app
Voice Control : Amazon Alexa and Google Home (Bosch does not list Apple HomeKit)
Accessory Terminal : H/dH drives one humidifier or one dehumidifier, not both; active and passive dehumidification without external relays
Transformers : Supports two-transformer systems (Rh and Rc)
Anti-Short Cycle : 1-5 minutes, 3-minute default
Humidity Readout : 0-100% RH ±5% display; 30-90% RH setpoint range
App : Bosch Connected Control (iOS and Android), with remote control and Vacation mode
Warranty : 5-year limited
Pros & Cons#
Pros:
- Largest display in its class at 5 inches, readable from across the room
- Handles heat pumps up to 4 heat / 2 cool stages, not just basic furnaces
- 7-day scheduling done directly on the screen without touching the app
- Local touchscreen keeps working even when Wi-Fi or the app is down
- Simple terminal layout with 7 relays fits most 24V HVAC systems
- Backed by a 5-year limited warranty, longer than most competitors
- Matches premium learning thermostats on HVAC support without sitting in their tier
Cons:
- C-wire is mandatory, so older two-wire installs need an adapter or new wiring before the thermostat will power on
- No geofencing, so it will not switch to Away mode when you leave the house
- No support for remote room sensors, meaning it only reads temperature at the wall where it's mounted
- 2.4GHz Wi-Fi only, with no 5GHz band support
- The Connected Control app is basic, and owners report occasional drops in remote connectivity
Final Verdict#
Buy it. The Bosch BCC100 is the rare thermostat that optimizes for the thing you actually interact with — a large, legible, locally-controlled screen — while quietly out-supporting its class on multi-stage heat pump wiring.
Our recommendation: Before you order, pull your existing thermostat off the wall and confirm you have a C-wire (usually blue) landed on the common terminal. If it's there, this is a 30-minute swap and the best display in the category. If it isn't, plan on a C-wire adapter first. Get it now: View on Amazon
